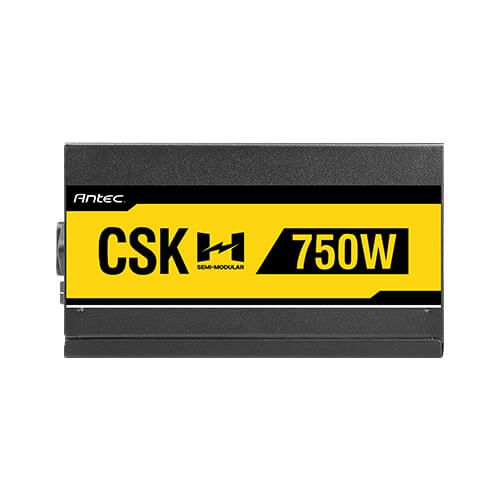

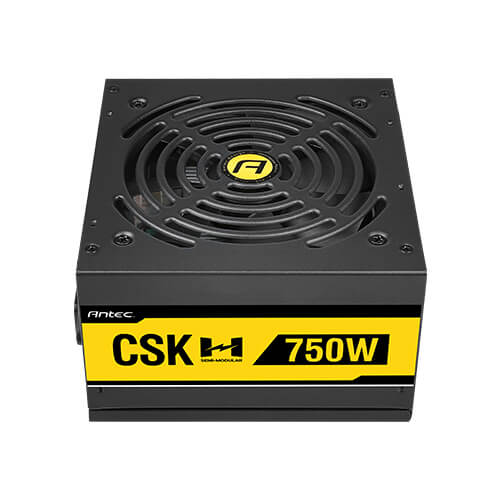

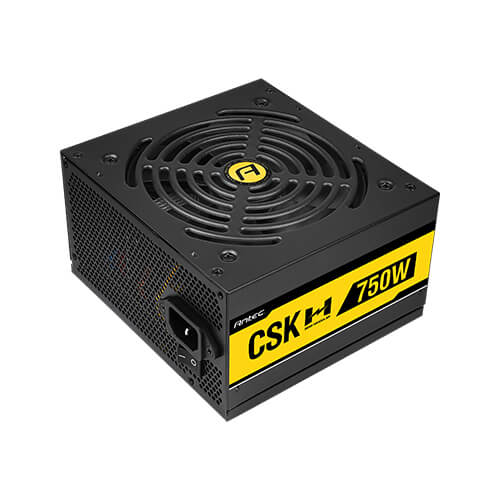

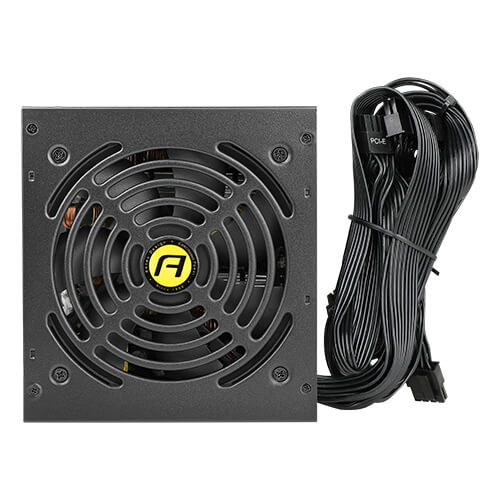

Antec Power Supply CSK 750H 80+ Bronze Certified 750W Semi Modular
Antec Power Supply CSK 750H 80+ Bronze Certified 750W Semi Modular
| Product Name | CSK750H |
| Model Name | X5000A257HC-20 |
| Type | ATX 12V 2.31 |
| Modular | Semi Modular |
| Dimension | 140(L) x 150(W) x 86(H) |
| Warranty | 3 years |
| Input Voltage | 100-240 VAC |
| Input Current | 10A-5A |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Efficiency | 88% Typically |
| Protection | OCP / OVP / UVP / SCP / OPP / NLO / OTP |
| Output Capacity | 750W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / CCC / FCC / KC |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Bronze |
| Connector | 1 x MB 24(20+4) Pin |
| 2 x 8(4+4) Pin EPS 12V | |
| 4 x 8(6+2) Pin PCI-E | |
| 8 x SATA | |
| 3 x Molex | |
| UPC# | 0-761345-11766-1 CSK750H 0-761345-11767-8 CSK750H AU 0-761345-11768-5 CSK750H EC 0-761345-11769-2 CSK750H GB 0-761345-11770-8 CSK750H JP |
| Net Weight | 1.77 kg |
| Gross Weight | 2.19 kg |
