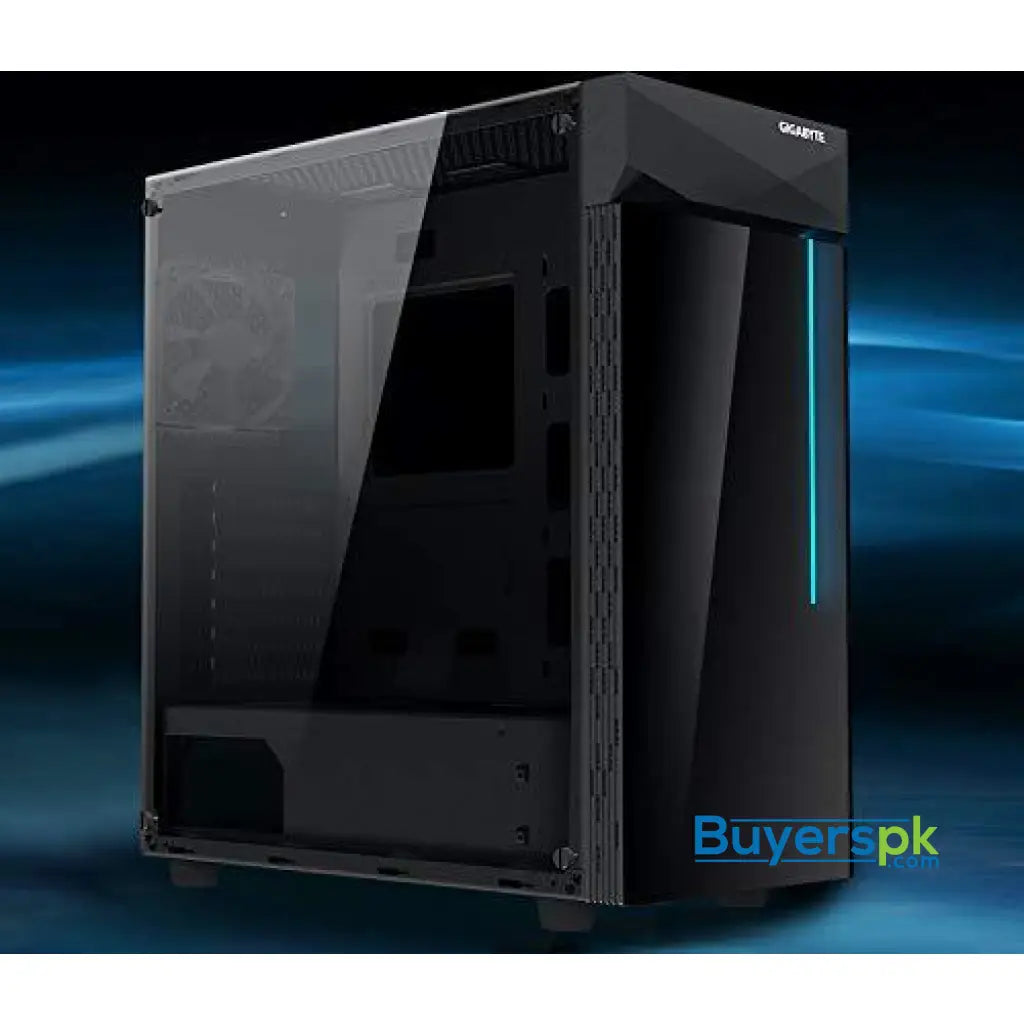

Gigabyte Gb-ac300g
Gigabyte GB-AC300G
Specifications
-
Case Form FactorMid Tower
-
M/B Typemini-ITX/m-ATX/ATX
-
ColorBlack
-
MaterialsSteel, Plastic, Glass
-
DimensionsH= 469 W= 211 D= 458mm (Within ± 1% error)
-
Expansion slots7 or 2 (Requires PCIE Riser Cable)
-
5.25" Drive BaysNone
-
3.5“/2.5” Drive Bays2
-
2.5" Drive Bays3(Behind the MB tray)
-
I/O PanelHDMI x1
USB 3.1 Gen2 Type-C x1
USB 3.0 x2
Audio In & Out (Supports AC97 / HD Audio) -
Fan Support"Front : 120mm x3 / 140mm x2
Top : 120mm x2 / 140mm x2
Rear : 120mm x1
(Pre-installed: Rear 120mm x 1, Front 120mm x 1) -
Radiator SupportFront : 360mm / 280mm / 240mm
Rear : 120mm -
Power Supply TypeStandard ATX (Not included)
-
Maximum CompatibilityCPU Height : 170mm
GPU Length : 400mm
PSU Length : 180mm -
Vertical GPU MountYes
-
Dust FiltersTop, Front, Bottom
-
RGB LightingYes (Support RGB Fusion 2.0)
-
WeightN.W. 8 Kg
-
Package DimensionsH=542 W=309 D=541 mm
-
Accessories1. Manual
2. Accessory Kit
Gigabyte GB-AC300G
Specifications
- Case Form Factor Mid Tower
- M/B Type mini-ITX/m-ATX/ATX
- Color Black
- Materials Steel, Plastic, Glass
- Dimensions H= 469 W= 211 D= 458mm (Within ± 1% error)
- Expansion slots 7 or 2 (Requires PCIE Riser Cable)
- 5.25" Drive Bays None
- 3.5“/2.5” Drive Bays 2
- 2.5" Drive Bays 3(Behind the MB tray)
-
I/O Panel
HDMI x1
USB 3.1 Gen2 Type-C x1
USB 3.0 x2
Audio In & Out (Supports AC97 / HD Audio) -
Fan Support
"Front : 120mm x3 / 140mm x2
Top : 120mm x2 / 140mm x2
Rear : 120mm x1
(Pre-installed: Rear 120mm x 1, Front 120mm x 1) -
Radiator Support
Front : 360mm / 280mm / 240mm
Rear : 120mm - Power Supply Type Standard ATX (Not included)
-
Maximum Compatibility
CPU Height : 170mm
GPU Length : 400mm
PSU Length : 180mm - Vertical GPU Mount Yes
- Dust Filters Top, Front, Bottom
- RGB Lighting Yes (Support RGB Fusion 2.0)
- Weight N.W. 8 Kg
- Package Dimensions H=542 W=309 D=541 mm
-
Accessories
1. Manual
2. Accessory Kit
