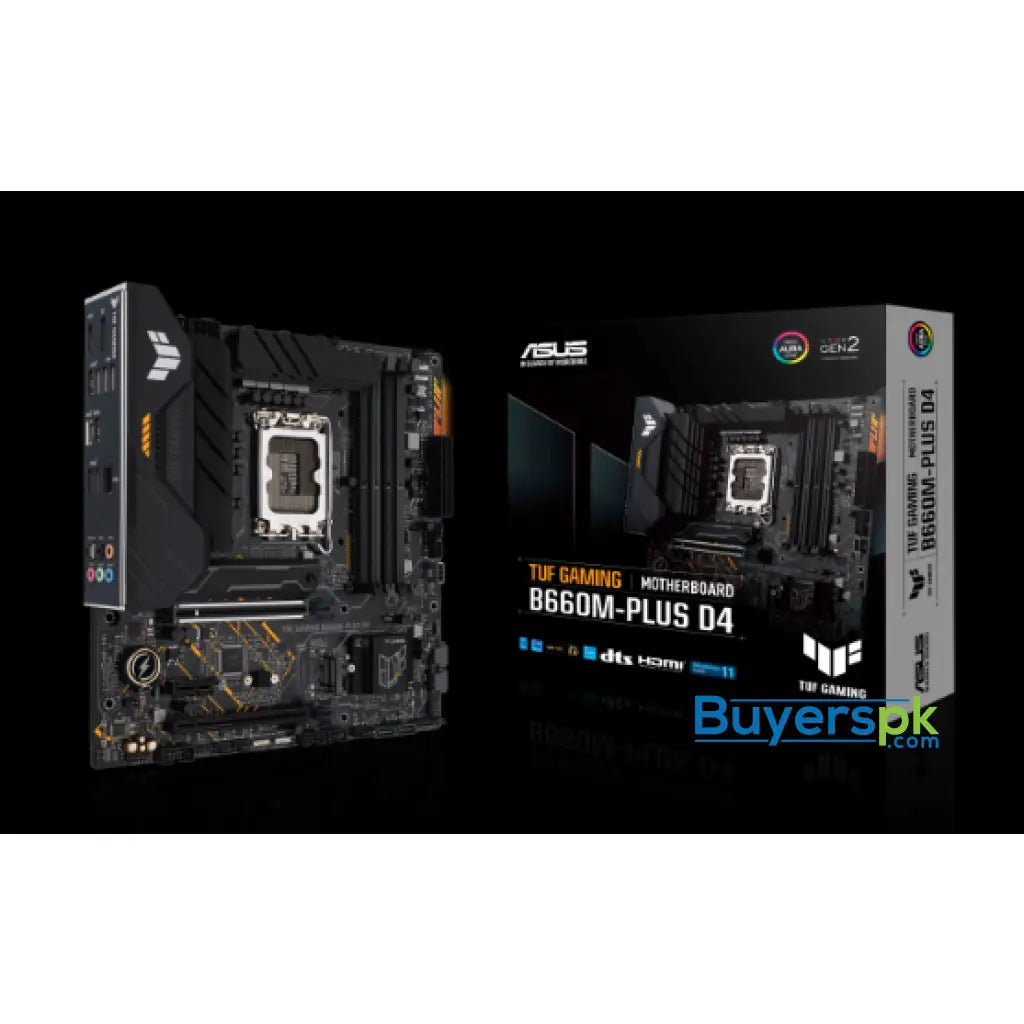

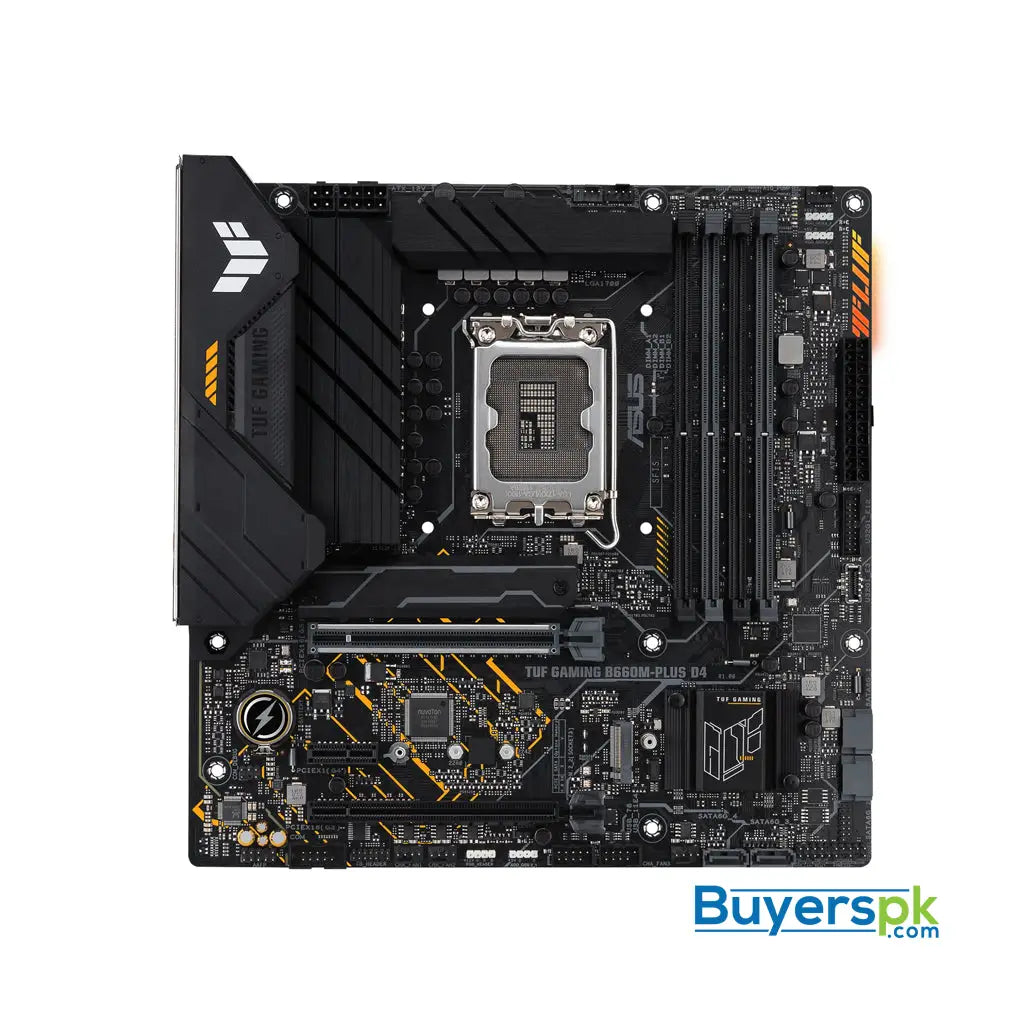

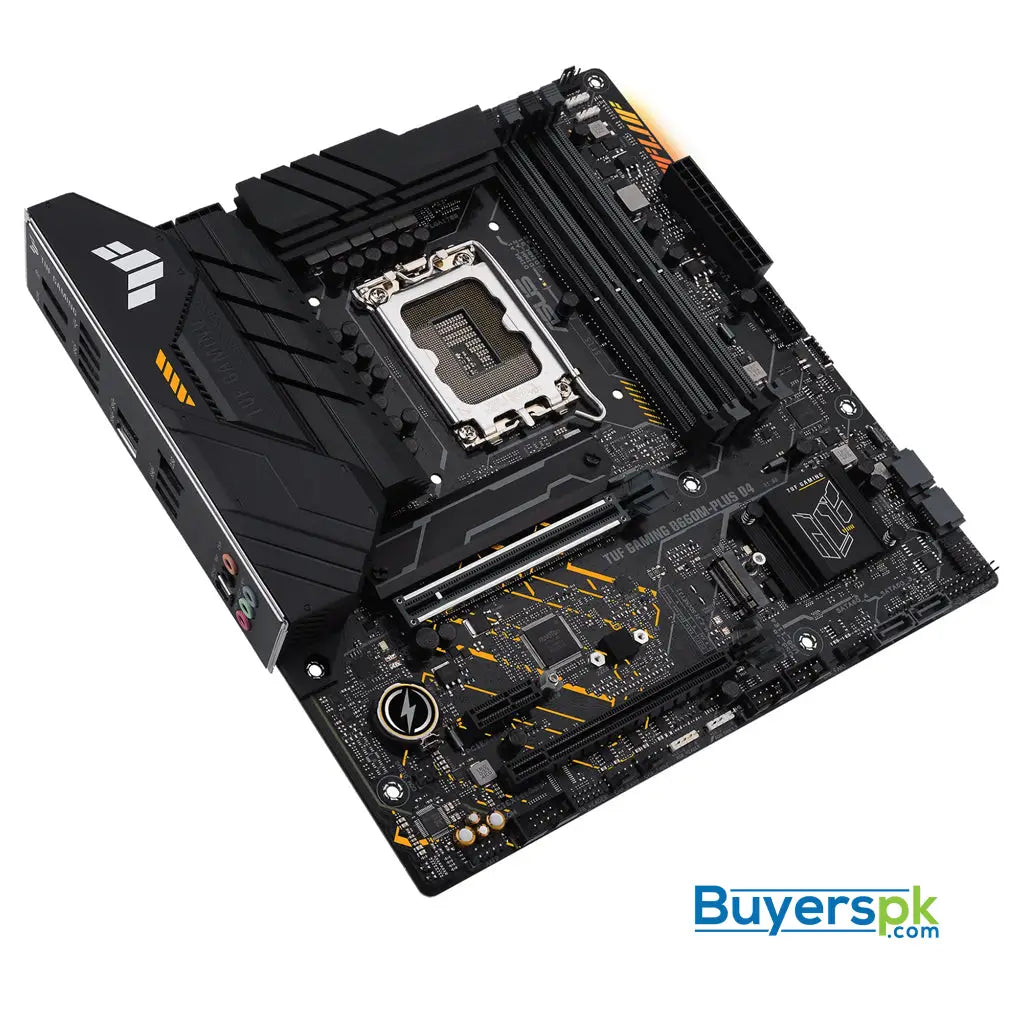

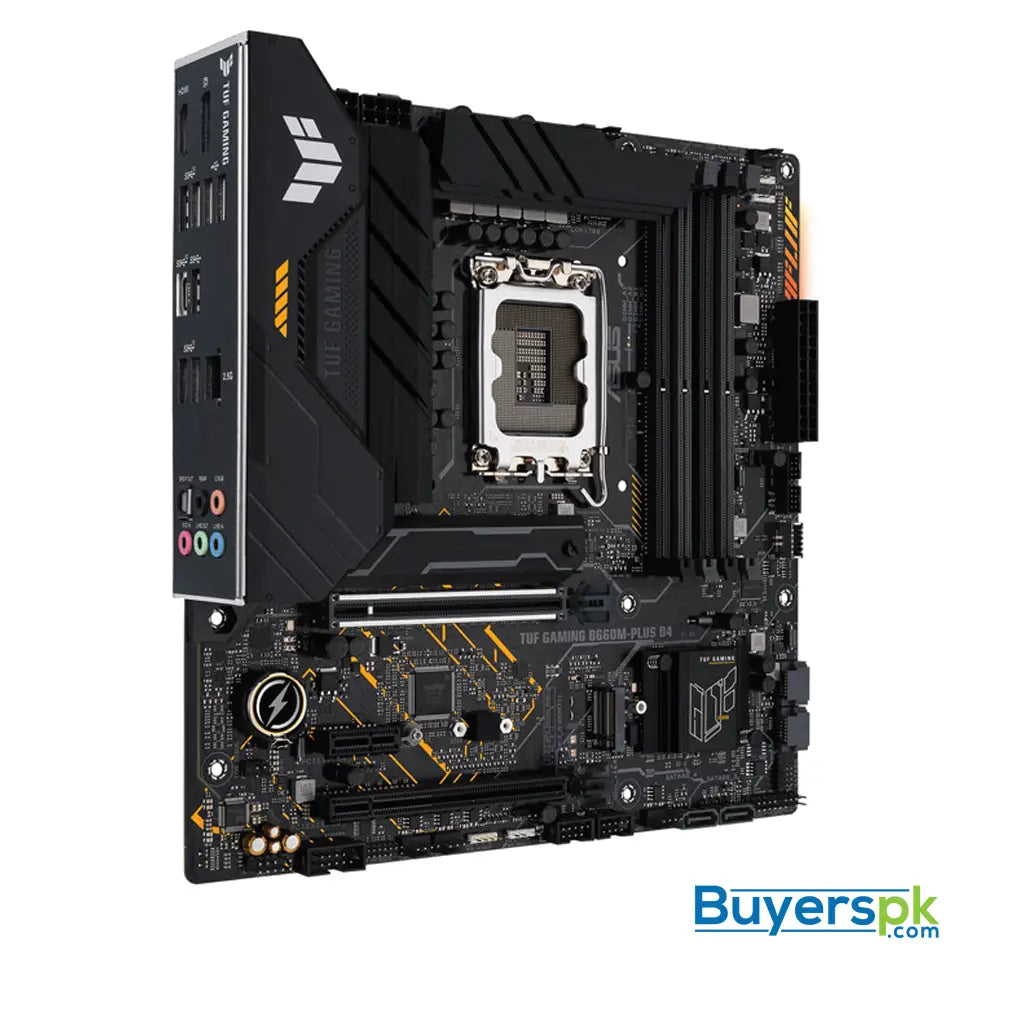

Asus Motherboard Tuf B660m plus Ddr4 Used
Intel® B660 (LGA 1700) mATX motherboard, 10+1 DrMOS Power stages , PCIe 5.0 support, DDR4 5333 (OC), Dual PCIe 4.0 M.2 Slots with Flexible Heatsink, Realtek 2.5Gb Ethernet, Rear USB 3.2 Gen 2x2 Type-C®, Front USB 3.2 Gen 1 Type-C®, Aura Sync, Two-way AI Noise Cancelation
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
- Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ header support
- Made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Specifications:
| FORM FACTOR | Micro ATX |
| SOCKET TYPE | LGA 1700 |
| COMPATIBLE PROCESSORS | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| CHIPSET | Intel B660 |
| MEMORY STANDARD | DDR4 Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066,5333 MHz |
| MEMORY SLOTS | 4 |
| MEMORY CHANNELS | Dual-channel |
| MAXIMUM INTERNAL MEMORY | 128 GB |
| PORTS | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 Digital audio optical out: 1 HDMI ports quantity: 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1 USB 2.0 ports quantity: 2 DisplayPorts quantity: 1 |
| ETHERNET | 2.5 Gigabit Ethernet |
| ONBOARD USB 2.0 | 2 |
| ONBOARD USB 3.1 | 2 |
| M.2 SLOTS | 2 |
| SATA III CONNECTORS | 4 |
| MAIN POWER CONNECTOR | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector |
| CPU FAN CONNECTOR | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header |
| 4 PIN FAN CONNECTORS | 3 x 4-pin Chassis Fan headers |
| RGB LED HEADER | 3 x Addressable Gen 2 headers 1 x AURA RGB header |
| AUDIO CHANNELS | 7.1 channels |
| PCI EXPRESS X1 | 1 |
| PCI EXPRESS X16 | Intel® 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) |
| RAID | 0,1,5,10 |
| RESOLUTION | 4K@60Hz |
| CHASSIS INTRUSION CONNECTOR | 1 x 20-3 pin System Panel header with Chassis intrude function |
| DIMENSIONS | Width: 244 mm Depth: 244 mm |
